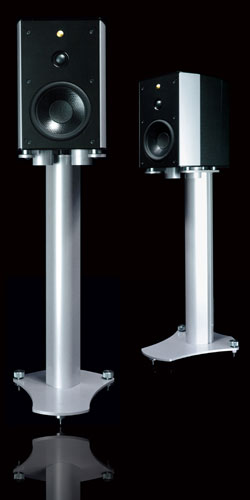

Wilson Benesch Trinity

The latest loudspeaker to come from Wilson Benesch, provides another glimpse of the future for loudspeaker design, that is in advance of all of its contemporaries. The key objectives were to achieve the most natural sound with the lowest possible noise floor. Close attention has been paid to phase and uncontrolled resonance and bandwidth, with point source characteristics being the guiding principle. The comprehensive list of new technologies that can be found in Trinity are touched on below.

This landmark design sets the agenda in the pursuit of high definition, wide bandwidth sound reproduction. Trinity can be used on its own, or in combination with the Torus system, to achieve the ultimate in terms of high quality, wide bandwidth, high definition sound. It pays homage to the capability of Vinyl source material, as well as the greater bandwidth capability of SACD and DVD Audio formats.

Technische Daten:
Description: 3 way, Wide bandwidth, linear phase, free space, ported enclosure, stand mounted monitor
Drive units: 1 x 170mm (7 in) Wilson Benesch W.B. One MID bass units
1 x 25mm (1 in) Soft dome, hand painted silk, ultra linear Wilson Benesch specification tweeter
1 x Sphere Ultrasonic Generator, Gold plated Ceramic dome advanced tweeter
Low frequency loading: Double reflex port tuning
Frequency range: -6dB at 40Hz and 100kHz
-3dB at 45Hz and 80kHz
Frequency response: 46Hz to 80kHz +- 2dB on axis
Sensitivity: 89dB spl at 1metre on axis. 2.83V input
Impedance: 6 Ohms nominal, 4 ohms minimum
Crossover: No crossover on mid range
First order tweeter
Selected polypropylene capacitors and air cored inductors are used throughout
Crossover frequencies: Mid acoustically loaded
Tweeter 5000 Hz
Internal wiring: Multi stranded, silver plated copper, PTFE jacketed cable harnesses
Soldered connections throughout
Shortpath P.C.B. design
Links supplied for single or bi-wire applications
Input connections: Bi-wireable, in-house machined gold plated copper alloy terminals
Power handling: 200W peak unclipped programme
Maximum spl: 111dB at 1 metre
Dimensions: Height 335mm
Height On Stand 1080mm
Width 235mm
Depth 300mm
Internal volume: 12 litres
Net weight: 32kg
