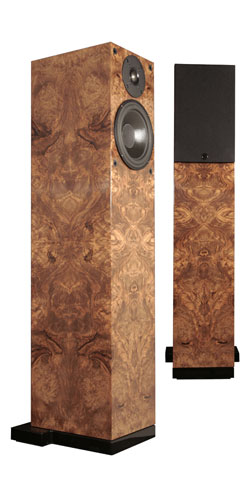

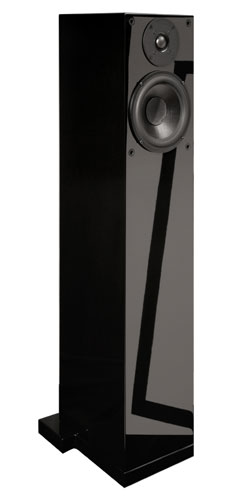

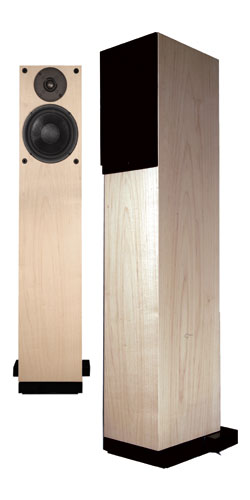

Wilson Benesch Square Two
|
| The Square Two, This two-way, floor standing design, provides an excellent price performance ratio. The Square Two sees an A.B.R. deployed in the same location as the Square One. The signal to noise ratio of the cabinet, is significantly lower than competing designs. The tweeter enjoys the benefit of its own chamber, as in the A.C.T. This detail improves the response of the tweeter, whilst also protecting the sensitive crossover components from the energy of the main driver. The chamber itself is of course a strong part of the cabinet, being a small enclosed structure. As in all Wilson Benesch designs, the bass driver is precisely tuned, to provide a natural low frequency roll off, that is supported by the precisely vented port at the bottom of the cabinet.
All the Square designs benefit from the Wilson Benesch Tactic drive unit, crossover components, internal wiring and terminal provision. It follows that the character of the Square two, is very similar to the more exotic siblings in the Wilson Benesch marque. Transparent, free of boxy characteristics, fast and accurate. When higher levels of performance are required that are beyond the limits of the Square, then the Square Two is capable of providing that extra level of bandwidth.
|
| Technische Daten: |
| Description: |
2 Way, true linear phase, ported enclosure with assisted bass radiator |
| Drive units: |
1 x 170mm (7in) Wilson Benesch Tactic Drive Unit
1 x 25mm (1in) Soft Dome Hand painted Silk, Ultra Linear Wilson Benesch Specific Tweeter |
| Low frequency loading: |
Assisted radiator and tuned port at the base of the cabinet |
| Frequency range: |
-6dB at 50Hz and 30kHz
-3dB at 60Hz and 25kHz |
| Frequency response: |
60Hz to 24Hz +/- 2dB on axis |
| Sensitivity: |
88dB spl at 1 metre on axis 2.83V Input |
| Impedance: |
6 Ohms nominal, 4 Ohms minimum |
| Crossover: |
Second order tweeter crossover
Selected polypropylene capacitors and air cored inductors are used throughout |
| Crossover frequencies: |
Tweeter 5kHz |
| Internal wiring: |
Multi-stranded, silver plated copper, PTFE jacketed cable harnesses. Soldered connections throughout. Short path PCB design
Links supplied for single or bi-wire application |
| Input connections: |
Bi-wireable, in-house machined rhodium plated copper alloy terminals |
| Power handling: |
200W peak unclipped program |
| Dimensions: |
Height 975mm
Width 200mm
Depth 255mm |
| Internal volume: |
34 Litres |
| Net weight: |
25kg |
