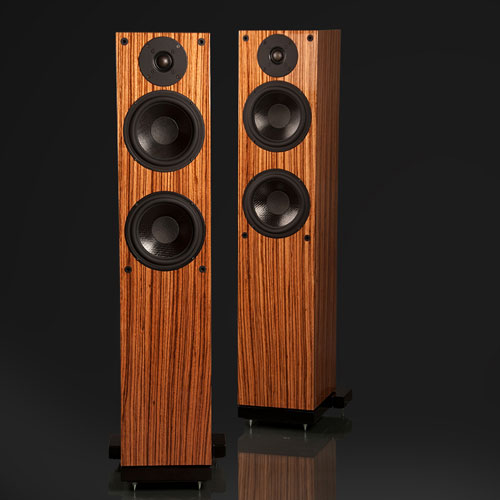

Wilson Benesch Square Three
|
| The Square Three is a 2.5-way, floor standing loudspeaker. A completely new addition to the Square Series, the Square Three adds an additional precisely matched bass drive unit to give the speaker more dynamic power, authority and presence.
Taking all its primary technologies from the multi award winning A.C.T. you can be more than confident that this new floor standing design will deliver a matchless performance in this class of speaker.
In the Square Three you can see a multitude of cabinet resonance defeating technologies. Starting at the rear Impact Zone of the cabinet you will see the innovative Wilson Benesch assisted bass radiators. These absorb the energy from the powerful Tactic Drive Units and dissipates it as heat significantly reducing cabinet noise.
Internally, the carbon composite technologies used in the Odyssey Range have been added to the Square Series in the form of internal bracing. High and Medium mass alloy pads add critical mass damping to the Square Three cabinet panels. These measures reduce the noise floor and allow the listener to hear the subtleties of the high performance Tactic Drive Units, all of which come from the same shelf as the highly acclaimed, award winning Odyssey Series.
|
| Technische Daten: |
| Description |
2.5-Way, Ported Enclosure with Mid & Bass
Assisted Bass Radiators Internally braced &
damped with Carbon Fibre Ribs & Critical Mass
Damping Pads
|
| Drive units |
1 x 170mm Wilson Benesch Bass Unit
1 x 170mm Wilson Benesch Mid Range Unit
1 x 25mm Soft Dome Hand painted Silk, Ultra Linear Wilson Benesch Specific Tweeter |
| Low frequency loading |
Double chamber, Tuned Bass Ports at the base of the Cabinet |
| Frequency response |
35Hz to 24Khz |
| Sensitivity |
87dB spl at 1 metre on axis. 2.83V Input |
| Impedance |
6 Ohms nominal, 4 Ohms minimum |
| Crossover |
First order bass roll-off
Second order tweeter crossover
Selected polypropylene capacitors and air cored inductors are used throughout. |
| Crossover Frequencies |
500Hz / 5kHz |
| Internal wiring |
Multi-stranded, silver plated copper, PTFE jacketed cable harnesses. Soldered connections throughout. Short path PCB design. |
| Input connections |
Links supplied for single or bi-wire application
Bi-wireable, in-house machined rhodium plated copper alloy terminals |
| Power handling |
200W peak unclipped program |
| Height |
975mm |
| Width |
200mm |
| Depth |
255mm |
| Internal volume |
32 Litres |
| Weight |
32kg |
| Available Finishes |
High Build Gloss Wood Finish: Piano Black, White, Red Tulip, Red Birds Eye, Birds Eye Maple, Burr Walnut, Ebonised Walnut, Walnut, Zebrano
Satin Wood Finish: Natural Cherry, Maple, Oak |
