Wilson Benesch Odyssey Discovery
|
A loudspeaker is a machine and like all good machines, performance is ultimately determined by the quality of the materials from which it is fabricated. In order to achieve the Reference Standard accolades that have been won throughout the world, Wilson Benesch exerts absolute control over each and every aspect of the design. In this way we are able to translate our concepts into the high performance systems that set the standard, on a global scale, by which the others are judged.

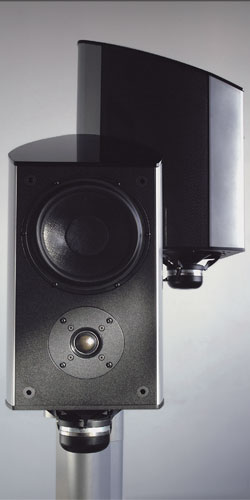

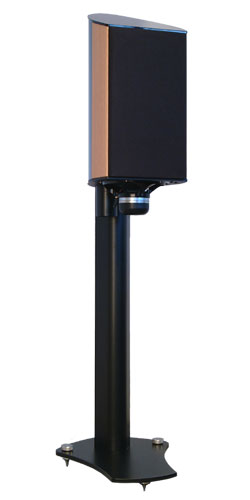

The Discovery is the first descendant of the ground breaking Bishop project. There has never been a loudspeaker like it, and it is best described as a Micro Floorstander. Four drivers are compressed into each A.C.T. (Advanced Composite Technology) Alloy strucure, providing a powerful yet controlled performance of outstanding clarity and precision.
The alloy structures are finished in a variety of high performance polymers. A bespoke service is also available for the discerning client, interior designer or architect.
|
Technische Daten: |
Description: |
2.5 way, true linear phase, free space, ported enclosure, integral stand mounted monitor |
Drive units: |
2 x 170mm (7 in) Wilson Benesch Tactic Isobaric bass units
1 x 170mm (7 in) Wilson Benesch Tactic bass / mid range unit
1 x 25mm (1 in) Soft dome, hand painted silk, ultra linear Wilson Benesch specification tweeter |
Low frequency loading: |
Double chamber, differential reflex tuning of conventional and isobaric bass drivers |
Frequency range: |
-6dB at 38Hz and 30kHz
-3dB at 42Hz and 25kHz |
Frequency response: |
45Hz to 24kHz +- 2dB on axis |
Sensitivity: |
88dB spl at 1metre on axis. 2.83V input |
Impedance: |
6 Ohms nominal, 4 ohms minimum |
Crossover: |
First order bass roll-off
First order mid range crossover
Second order tweeter crossover
Selected polypropylene capacitors and air cored inductors are used throughout |
Crossover frequencies: |
Bass 500Hz
Mid 5kHz
Tweeter 5kHz |
Internal wiring: |
Multi stranded, silver plated copper, PTFE jacketed cable harnesses
Soldered connections throughout
Shortpath P.C.B. design
Links supplied for single or bi-wire applications |
Input connections: |
Bi-wireable, in-house machined gold plated copper alloy terminals |
Power handling: |
200W peak unclipped programme |
Maximum spl: |
110dB at 1 metre |
Dimensions: |
Height 1100mm
Width 230mm
Depth 370mm |
Internal volume: |
13 litres |
Net weight: |
35kg |
