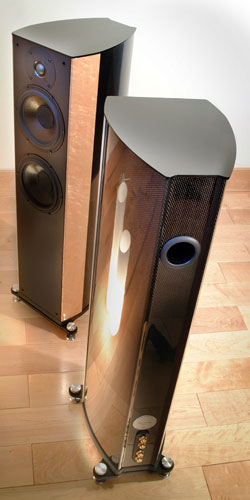

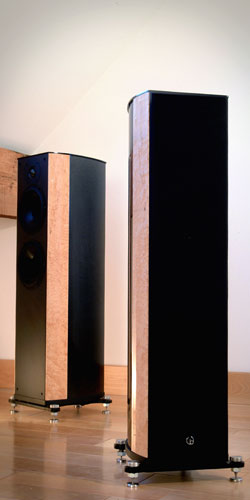

Wilson Benesch Odyssey Curve
|
| With Technology drawn from Formula 1, Wilson Benesch continues to grow its shamelessly luxurious range of loudspeakers. The latest development is a new floor standing design. The Curve borrows much of its design elements from the fabulous A.C.T. loudspeaker but is available at almost half the price. In terms of height it is smaller than the diminutive two way Arc but remains capable of achieving 200 watt peak program.
The A.C.T. and the Curve are the most accurate loudspeakers that the company has ever released. (See measurement attached) The Structural elements are all drawn from engineering materials more commonly seen in advanced engineering systems and include advanced composite structures, steel, Neodymium Iron Boron Motors and unique polymer diaphragms. The structural integrity of the Curve is another benchmark and provides a clarity and precision that would be impossible to achieve with conventional loudspeaker materials technology.
The Tactic® drive unit is at the heart of the system and as it is common to all the Wilson Benesch designs makes this the ultimate solution for a compact Home Cinema solution where compromise is simply not acceptable.
|
| Technische Daten: |
| Description: |
2.5 way, true linear phase, free space, ported enclosure, floorstanding monitor |
| Drive units: |
1 x 170mm (7 in) Wilson Benesch Tactic bass unit
1 x 170mm (7 in) Wilson Benesch Tactic bass / mid range unit
1 x 25mm (1 in) Soft dome, hand painted silk, ultra linear Wilson Benesch tweeter |
| Low frequency loading: |
Bessel alignment of fourth order reflex. Double chamber, differential tuning |
| Frequency range: |
-6dB at 32Hz and 30kHz
-3dB at 35Hz and 25kHz |
| Frequency response: |
35Hz to 24kHz +- 2dB on axis |
| Sensitivity: |
88dB spl at 1metre on axis. 2.83V input |
| Impedance: |
6 Ohms nominal, 4 ohms minimum |
| Crossover: |
First order bass roll-off
Second order mid range and tweeter crossover
Selected polypropylene capacitors and air cored inductors are used throughout |
| Input connections: |
bi-wireable, in-house machined gold plated copper alloy terminals |
| Power handling: |
200W peak unclipped programme |
| Maximum spl: |
109dB at 1 metre |
| Dimensions: |
Height 910mm
Width 230mm
Depth 370mm |
| Internal volume: |
42.5 litres |
| Net weight: |
48kg |
