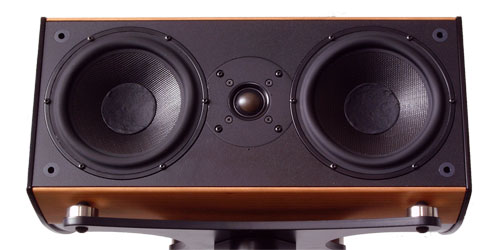

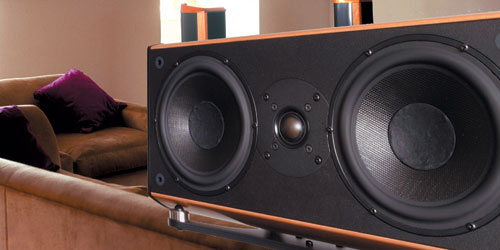

Wilson Benesch Odyssey Centre


Technische Daten:
Description: 2.5 way, true linear phase, free space, ported enclosure, integral stand mounted monitor
Drive units: 1 x 170mm (7 in) Wilson Benesch Tactic Isobaric bass unit
1 x 170mm (7 in) Wilson Benesch Tactic bass / mid range unit
1 x 25mm (1 in) Soft dome, hand painted silk, ultra linear Wilson Benesch specification tweeter
Low frequency loading: Double chamber, differential reflex tuning
Frequency range: -6dB at 40Hz and 30kHz
-3dB at 43Hz and 25kHz
Frequency response: 45Hz to 24kHz +- 2dB on axis
Sensitivity: 88dB spl at 1metre on axis. 2.83V input
Impedance: 6 Ohms nominal, 4 ohms minimum
Crossover: First order bass roll-off
First order mid range crossover
First order tweeter crossover
Selected polypropylene capacitors and air cored inductors are used throughout
Crossover frequencies: Bass 500Hz
Mid 5kHz
Tweeter 5kHz
Internal wiring: Multi stranded, silver plated copper, PTFE jacketed cable harnesses
Soldered connections throughout
Shortpath P.C.B. design
Links supplied for single or bi-wire applications
Input connections: Bi-wireable, in-house machined gold plated copper alloy terminals
Power handling: 200W peak unclipped programme
Maximum spl: 111dB at 1 metre
Dimensions: Height 235mm
Width 470mm
Depth 310mm
Internal volume: 13 litres
Net weight: 12kg
