Wilson Benesch Odyssey Arc

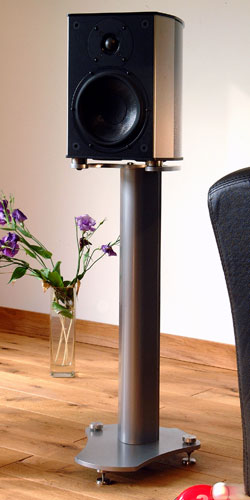

The Arc is assembled from exactly the same technology as the Discovery. It is capable of being used in isolation or wall mounted but the stand makes for the ideal mounting for this cutting edge technology two way loudspeaker.

The Arc can form the basis for a sophisticatted two way or multi channel system. The Wilson Benesch Tactic and tweeter drive unit are identical to both the Centre and the Discovery, so system matching is axiomatic.

Pleasure in Progress: It is always a pleasure when one encounters suberb engineering, and when the design is original it is all the more intriguing. Technology affects all our lives, nothing more so than materials technology. History has categorized the Stone, Bronze & Iron ages by the materials that drove technological advance in these eras.

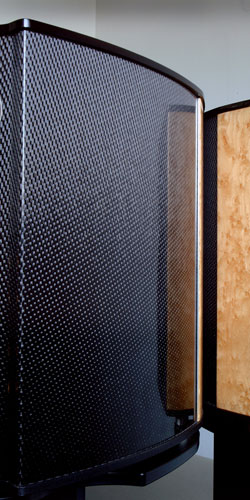

Developments in audio equipment are no different. The innovative curved A.C.T. carbon fibre panels that were originally engineered by Wilson Benesch in 1995 may well have been imitated by numorous wood based solutions but the difference in performance is obvious. When did you last see an M.D.F. Formula One Racing car or a wooden racket at wimbledon!

Ownership of Wilson Benesch audio equipment is a pleasure. It is about the emotional satisfaction we derive from music of course, but it is also about pride of ownership & progress. About being involved with the technology of the time and the pleasure of advanced engineering that goes beyond the limits of yesterday's technology.

Technische Daten:
Description: 2 way, true linear phase, free space, ported enclosure, stand mounted monitor
Drive units: 1 x 170mm (7 in) Wilson Benesch Tactic bass / mid range unit
1 x 25mm (1 in) Soft dome, hand painted silk, ultra linear Wilson Benesch specification tweeter
Low frequency loading: Double reflex port tuning
Frequency range: -6dB at 42Hz and 30kHz
-3dB at 45Hz and 25kHz
Frequency response: 46Hz to 24kHz +- 2dB on axis
Sensitivity: 88dB spl at 1metre on axis. 2.83V input
Impedance: 6 Ohms nominal, 4 ohms minimum
Crossover: First order mid range crossover
Second order tweeter crossover
Selected polypropylene capacitors and air cored inductors are used throughout
Crossover frequencies: 5kHz
Internal wiring: Multi stranded, silver plated copper, PTFE jacketed cable harnesses
Soldered connections throughout
Shortpath P.C.B. design
Links supplied for single or bi-wire applications
Input connections: Bi-wireable, in-house machined gold plated copper alloy terminals
Power handling: 200W peak unclipped programme
Maximum spl: 111dB at 1 metre
Dimensions: Height 310mm
Height on stand 950mm
Width 230mm
Depth 370mm
Internal volume: 10.5 litres
Net weight: 11kg
Gross weight with stand: 28kg
