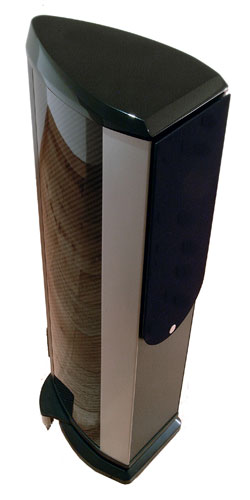

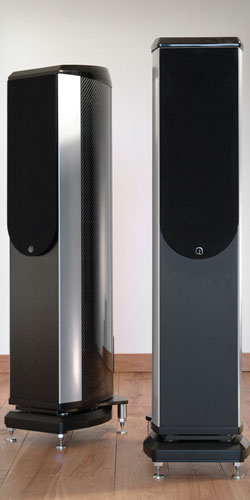

Wilson Benesch Odyssey A.C.T.

The A.C.T. is the first loudspeaker to be assembled entirely from metal and carbon composite. Bespoke options available in any colour or any veneer.

Technology:

Advance Composite Technology cabinet construction (A.C.T. Panels) Distinctive sloping top design foreshortens the visual appearance and minimises diffraction. Advanced design allies 24 different materials to achieve the ultimate solution. Tactic advanced dynamic drive unit technology. Multi alloy baffle provides ultimate solution to driver mounting Full metal bracing and baffle arrangment.

Technische Daten:
Description: 2.5 way, true linear phase, free space, ported enclosure, floorstanding monitor
Drive units: 1 x 170mm (7 in) Wilson Benesch Tactic bass unit
1 x 170mm (7 in) Wilson Benesch Tactic bass / mid range unit
1 x 25mm (1 in) Soft dome, hand painted silk, ultra linear Wilson Benesch specification tweeter
Low frequency loading: Bessel alignment of fourth order reflex. Double chamber, differential tuning
Frequency range: -6dB at 32Hz and 30kHz
-3dB at 35Hz and 25kHz
Frequency response: 35Hz to 24kHz +- 2dB on axis
Sensitivity: 88dB spl at 1metre on axis. 2.83V input
Impedance: 6 Ohms nominal, 4 ohms minimum
Crossover: First order bass roll-off
Second order mid range and tweeter crossover
Selected polypropylene capacitors and air cored inductors are used throughout
Crossover frequencies: Bass 500Hz
Mid 5kHz
Tweeter 5kHz
Internal wiring: Multi stranded, silver plated copper, PTFE jacketed cable harnesses
Soldered connections throughout
Shortpath P.C.B. design on mid range and tweeter crossover
Link wires supplied for single or bi-wire applications.
Input connections: bi-wireable, in-house machined gold plated copper alloy terminals
Power handling: 200W peak unclipped programme
Maximum spl: 111dB at 1 metre
Dimensions: Height 1080mm
Width 230mm
Depth 370mm
Internal volume: 42.5 litres
Net weight: 52kg
